NIST Publications are interconnected with one another. However, I used to be confused about how and what to refer to when I was in compliance consulting. So I’d like to organize and verify the connections between them
One mandatory, federal-facing stack runs from statue down through policy to the operational Risk Management Framework, and then to the controls and extensions that fill it in. Alongside it sits a family of voluntary, cross-sector frameworks that map back onto that same stack rather than competing with it.
Table of contents
Open Table of contents

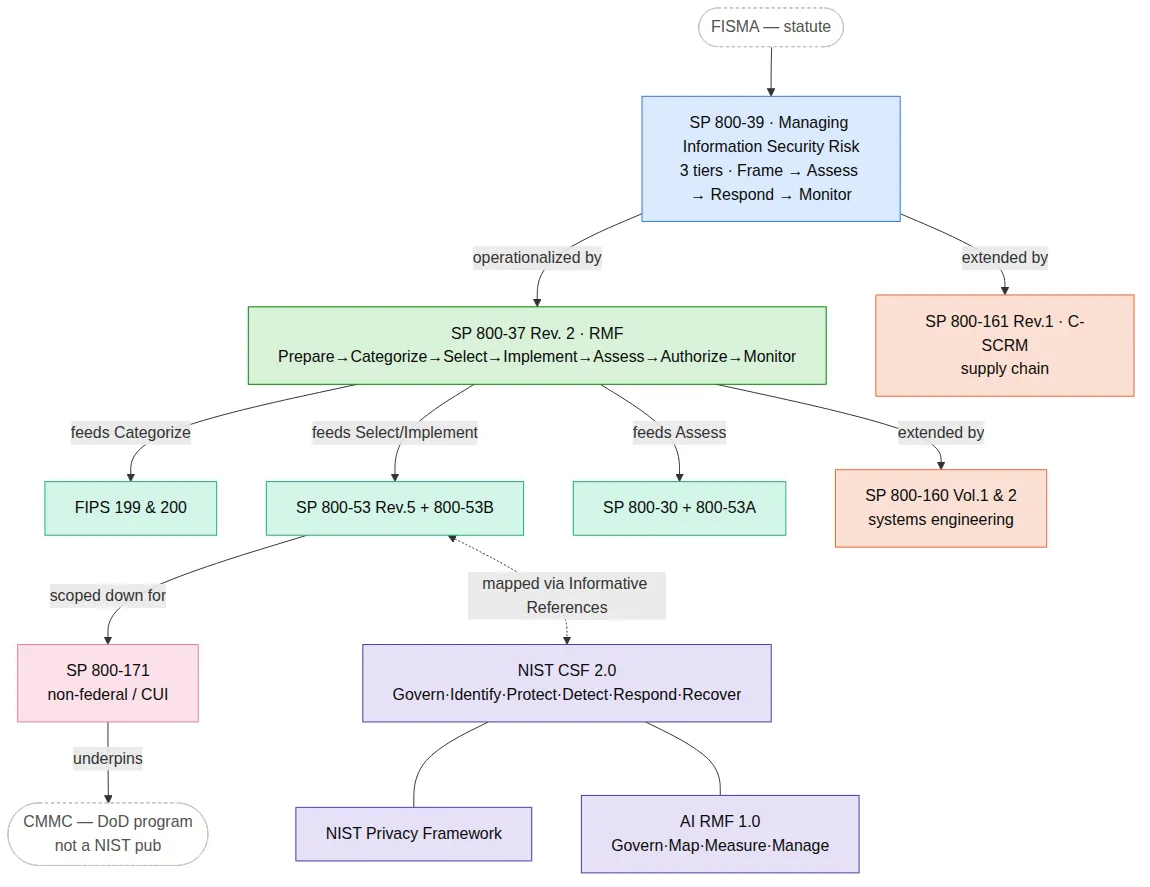

Connection Diagram
Foundational & statute
FISMA is the statute that makes the rest of this stack mandatory for federal agencies. It points to SP 800-39, Managing Information Security Risk,the foundational policy-level document. SP 800-39 defines three risk tiers-Organization, Mission & Business Process, and Information System-and a four-step risk process: Frame -> Assess -> Respond -> Monitor. Nearly everything else below is an elaboration of this model.
RMF Process
SP 800-37 Rev.2, the Risk Management Framework(RMF), turns 800-39’s philosophy into a concrete system lifecycle: Prepare, Categorize, Select, Implement, Assess, Authorize, and Monitor. It also integrates security and privacy risk into one process rather than treating them seperately
RMF Step Inputs
Three puplication groups fill in specific RMF steps. FIPS 199 & 200 set a system’s impact level(Low/Moderate/High) and its minimum security requirements, feeding the Categorize step. SP 800-53 Rev.5 + SP 800-53B supply the risk-assessment methodology and the procedures used to verify controls were implemented correctly, feeding assess.
Engineering & supply-chain extensions
SP 800-160 Volumes 1&2 add engineering-level depth to the Implement step: Volume 1 covers systems security engineering, Volume 2 covers cyber resilliency. SP 800-161 Rev.1(C-SCRM) extends 800-39’s tiers outward to vendors and suppliers, since risk doesn’t stop at an organization’s own systems.
Non-federal derivative
SP 800-171 takes a subset of 800-53’s moderate baseline and re-scopes it for non-federal systems handling Controlled Unclassified Information. It underpins CMMC, the DoD contractor certification program - CMMC itself is not a NIST publication
Voluntary, cross-sector frameworks
These aren’t mandated by FISMA and are usable by any organization, federal or not. NIST CSF 2.0 organizes risk around six functions-Govern, Identify, Protect, Detect, Respond, Recover-as a communication and prioritization tool; NIST’s informative refrences map every CSP subcategory to specific SP 800-53 controls. The NIST Privacy Framework shares CSF’s Core/Function structure, applied to privacy risk, and is a sibling to the privacy controls folded into SP 800-53 Rev.5. AI RMF(NIST AI 100-1) applies the same risk logic to AI systems through its own functions - Govern, Map, Measure, Manage - and is built to interoperatewith CSF and RMF rather than replace them
