Running LND with systemd, Without Containers (1) - The Lab Environment

I already run LND nodes in my local environment, on a Mac and in WSL, and I’m used to deploying simple applications to K3s. This series goes the other way: I’ll run LND and an Ethereum Hoodi node directly on the machine, without containers or Kubernetes.

Containers and Kubernetes caught on because running applications by hand was hard work for operators. A container packages an application with its dependencies so it runs the same way everywhere, and Kubernetes schedules those containers, restarts them when they fail, and wires them together. Those tools hide a lot of the operating system. Doing the same work by hand is how I want to see what they hide.

I’m not new to Linux. I’ve used Kali in a lot of ethical hacking labs, and Ubuntu for kernel settings. What I want from this series is different: tuning these nodes for day-to-day operations, and getting faster and more fluent in the terminal along the way. This first post covers the lab environment.

One more change from my earlier posts: I used to publish command output as Markdown text, which proves nothing about whether I actually ran it. In this series I show screenshots of the commands and their real output instead.

Prerequisites

The lab runs on one machine, in four layers:

Host

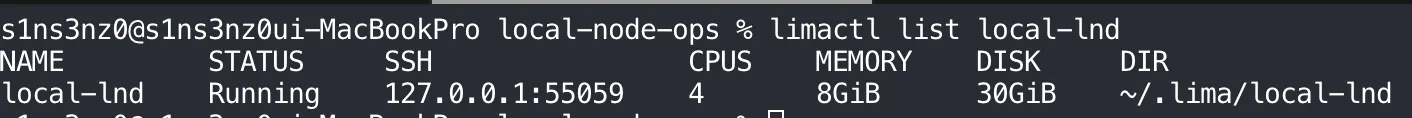

macOS can’t run Linux programs on its own kernel, so the Linux side of the lab needs a virtual machine. The host only lends the VM part of its CPU, memory, and disk. On the Mac, limactl shows what the VM got:

limactl list local-lnd

4 CPUs, 8 GiB of the Mac’s 48 GB, and a 30 GiB disk go to the lab; the rest stays with macOS. Lima also forwards a local port, here 127.0.0.1:55059, for SSH into the VM, and keeps the VM’s files under ~/.lima/local-lnd.

VM

Lima creates and runs Linux VMs on macOS from a short YAML template. The VM uses the same ARM64 architecture as the Mac, so it runs native ARM binaries without emulation. That matters later: every binary in this lab, LND included, has to be the ARM64 build.

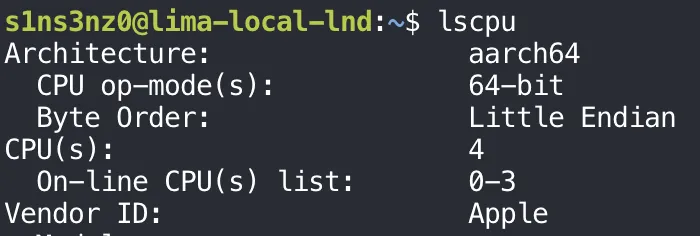

lscpu

aarch64 is the kernel’s name for 64-bit ARM; release downloads usually call the same architecture arm64. The 4 CPUs match what Lima assigned, and the vendor is Apple: the VM runs on the Mac’s own cores.

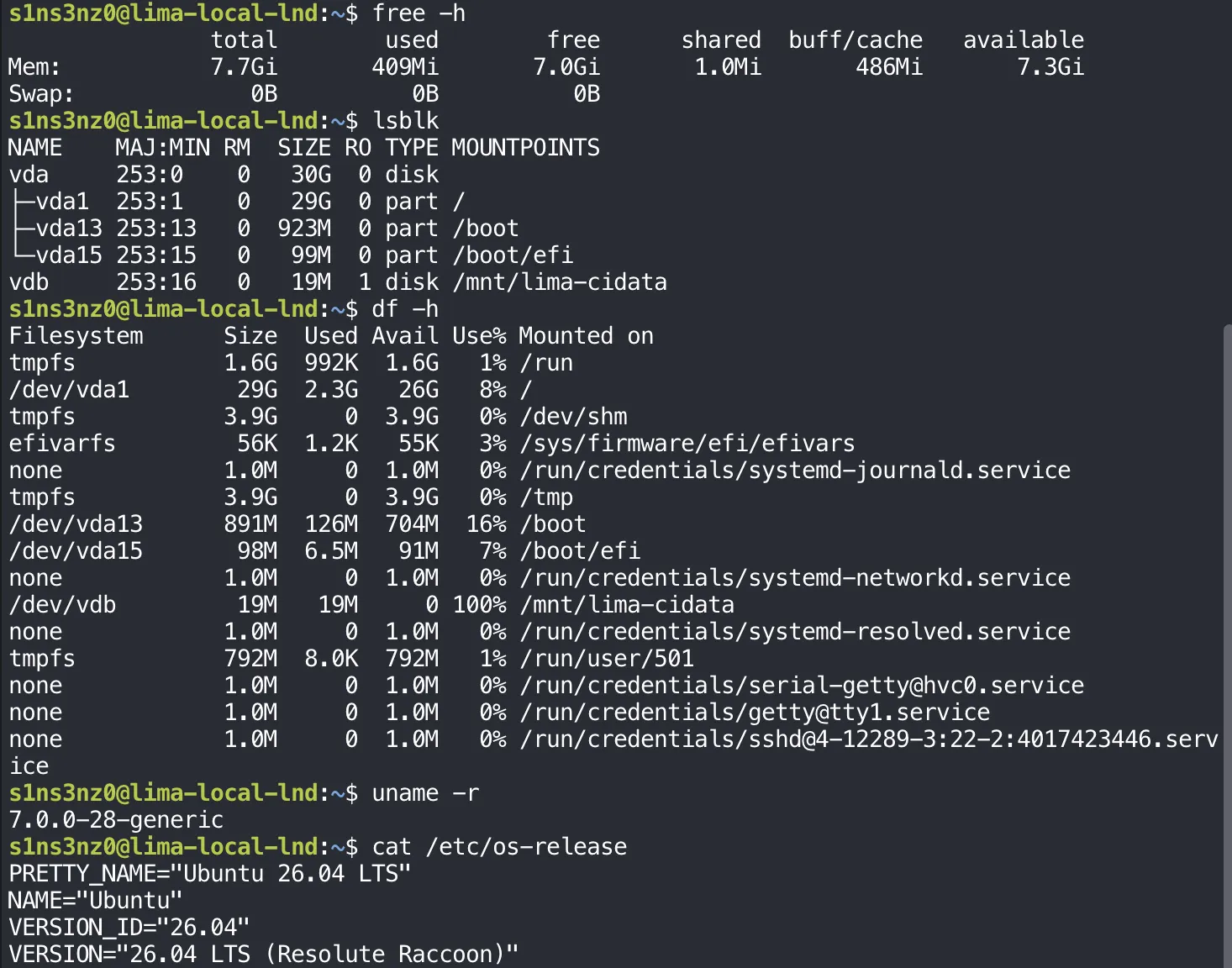

Memory, disk, kernel, and OS from inside the VM:

free -h
lsblk
df -h
uname -r
cat /etc/os-release

Guest kernel

The VM boots its own Linux kernel, 7.0.0-28-generic from uname -r above. This is the line between a VM and a container: a container shares the host’s kernel, while a VM brings its own. The kernel settings I tune in this series, such as file descriptor limits and network parameters, apply to this kernel and leave macOS untouched.

Service manager

Without Kubernetes, nothing restarts a crashed process or starts it at boot unless I set that up. On Ubuntu, that job belongs to systemd. Each node gets a unit file that says how to start it, which user it runs as, and what to do when it fails. Much of this series is about writing and hardening those units, the work a Kubernetes Deployment or StatefulSet did for me before.

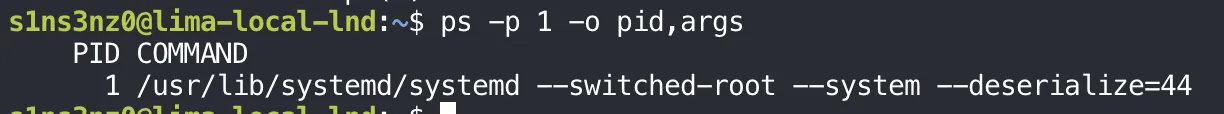

Process 1 in the VM confirms it:

ps -p 1 -o pid,args

Every service in this lab will be a child of this process.

Setting up the lab

Starting from a clean VM

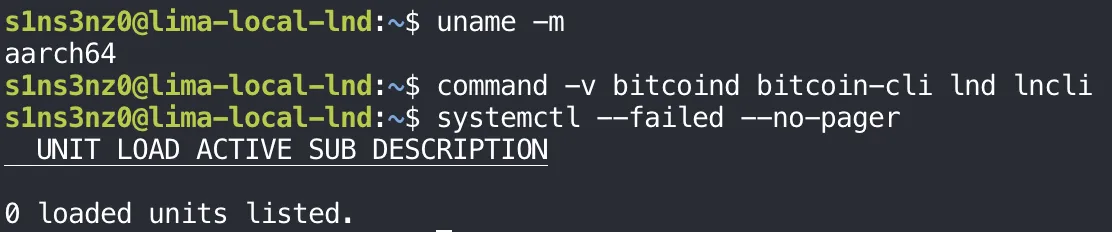

Before installing anything, I checked that the VM is a clean slate: the right architecture, none of the Bitcoin or Lightning binaries already on the PATH, and no failed services.

uname -m
command -v bitcoind bitcoin-cli lnd lncli
systemctl --failed --no-pager

command -v prints the path of each command it finds and nothing for the ones it doesn’t, which makes empty output the expected result here. --no-pager keeps systemctl from opening less, so the output stays in the terminal and in the screenshot.

Next: Installing and configuring Bitcoin Core.
